Active Bio Plus

conical-shaped implant

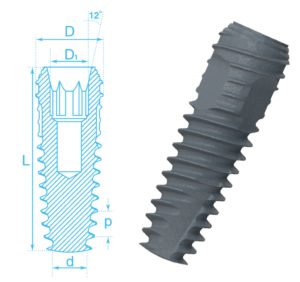

Active Bio Plus is a conical-shaped implant with a helical aggressive thread

Active Bio Plus is a conical-shaped implant with a helical aggressive thread. It is used under one- or two-steps procedure in all bone types. It prevents bone injuries and enlarges  the area of direct contact of the implant surface with the bone that speeds up the process of osseointegration . Due to a formation of a new bone around the  triangular part and enhanced antirotation effect, the best conditions for early rehabilitation are provided when the implant is used.

Active Bio Plus is highly  suitable for areas with soft bone tissue as its size and surface allow achieving good primary stability in such areas. Important body shape matches the shape of conical drills perfectly.

Single conical platform

Narrow platform 2.1 mm


Implant body

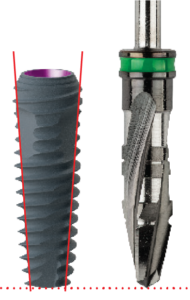

Marked tapered shape of the implant. The shape of an implant matches completely the drill. Initial stability is guaranteed


New packaging

Special buffer solution allows to preserve the impact properties of the implant surface

  • Platform Switching «Switching» of the platform
  • Micro thread Micro rings for better contact with a cortical plate
  • Inverted cone In upper part to reduce compression in cortical layer
  • Active thread Allows achieving reliable initial stability in soft bone
  • Apical part Curving in apical part prevents the damage of Schneider’s membrane
  • Antirotational sulcus Prevents unscrewing

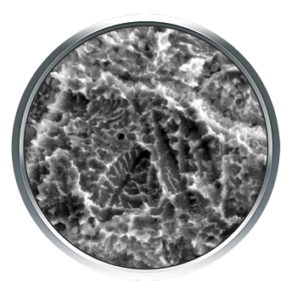

SLA-AHS Surface

Unique active and hydrophilic surface of a new generation. The possibility of applying early or immediate load on the implant. Reliable connection with bone. Faster bone formation on the surface of the implant


01

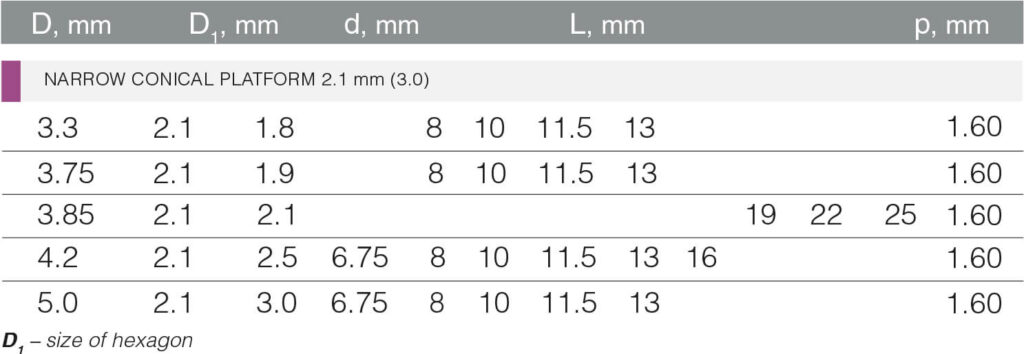

Table of implant sizes

02

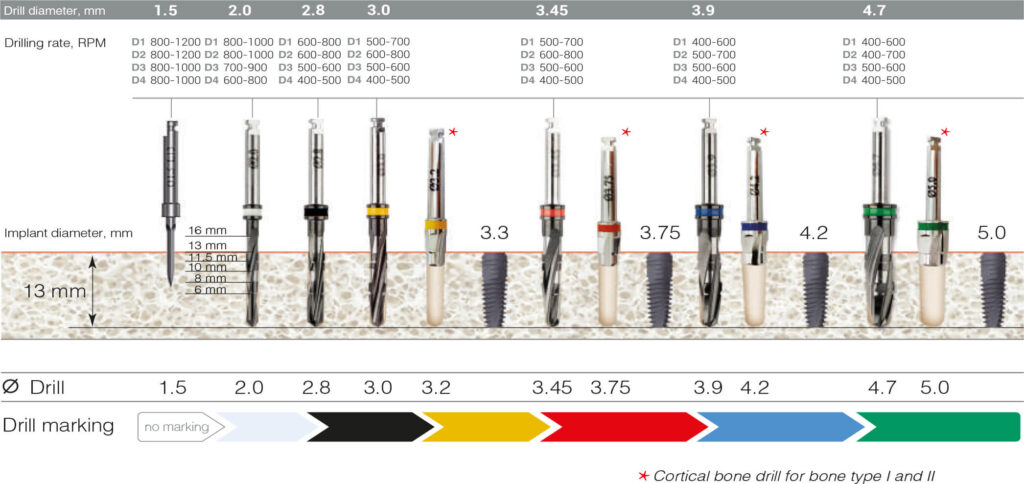

Table of sequential use of conical diamond like coated (DLC) drills
